The good old SAR

Posted on by
Reply

Quick reference of this noble and old school command.

Very useful for troubleshooting and server performance.

Checking CPU Activity

By default, sar command will report the CPU activity of the server. The option -u can be used to get the CPU utilization report.

To get the CPU activity report in every 2 seconds for 3 times:

$ sar -u 2 3

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	09/06/2020 	_x86_64_	(2 CPU)

22:26:54        CPU     %user     %nice   %system   %iowait    %steal     %idle
22:26:56        all      4,03      0,00      0,50      0,00      0,00     95,47
22:26:58        all      8,08      0,00      0,51      0,00      0,00     91,41
22:27:00        all     12,50      0,00      1,00      0,00      0,00     86,50
Average:        all      8,21      0,00      0,67      0,00      0,00     91,11

CPU usage for each processor

To find the CPU activity on all processors separately, you need to use the -P option.

$ sar -P ALL 1 1

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

05:38:18        CPU     %user     %nice   %system   %iowait    %steal     %idle
05:38:19        all      3,03      0,00      0,00      0,00      0,00     96,97
05:38:19          0      3,96      0,00      0,99      0,00      0,00     95,05
05:38:19          1      3,00      0,00      0,00      0,00      0,00     97,00

Average:        CPU     %user     %nice   %system   %iowait    %steal     %idle
Average:        all      3,03      0,00      0,00      0,00      0,00     96,97
Average:          0      3,96      0,00      0,99      0,00      0,00     95,05
Average:          1      3,00      0,00      0,00      0,00      0,00     97,00

Check Memory usage

To find the memory usage (used and free memory of the server) over time using the -r switch.

$ sar -r 1 3

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

05:41:04    kbmemfree kbmemused  %memused kbbuffers  kbcached  kbcommit   %commit  kbactive   kbinact   kbdirty
05:41:05       855300   3025220     77,96         0   1495276   2426864     30,55   1265008   1158172       100
05:41:06       854800   3025720     77,97         0   1495276   2426864     30,55   1265132   1158172       100
05:41:07       855032   3025488     77,97         0   1495276   2426864     30,55   1265012   1158172       100
Average:       855044   3025476     77,97         0   1495276   2426864     30,55   1265051   1158172       100

Check Swap Activity

Check the swap usage of the machine using the -W option:

$ sar -W 1 3
Linux 2.6.18-274.18.1.el5 (myserver) 09/06/2012
03:31:12 PM pswpin/s pswpout/s
03:31:13 PM 16.16 0.00
03:31:14 PM 16.00 0.00
03:31:15 PM 15.84 0.00
Average: 16.00 0.00

Find load averages over time

You can find the load averages overtime using the -q option:

$ sar -q 1 3

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

06:16:13      runq-sz  plist-sz   ldavg-1   ldavg-5  ldavg-15   blocked
06:16:14            0       329      0,00      0,04      0,09         0
06:16:15            0       329      0,00      0,04      0,09         0
06:16:16            0       329      0,00      0,04      0,09         0
Average:            0       329      0,00      0,04      0,09         0

Statistics for currently mounted filesystems

$ sar -F 2 3

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

06:30:18     MBfsfree  MBfsused   %fsused  %ufsused     Ifree     Iused    %Iused FILESYSTEM
06:30:20        30410      5532     15,39     15,39  18245113    166407      0,90 /dev/mapper/centos-root
06:30:20          796       218     21,52     21,52    523947       341      0,07 /dev/sda1

06:30:20     MBfsfree  MBfsused   %fsused  %ufsused     Ifree     Iused    %Iused FILESYSTEM
06:30:22        30410      5532     15,39     15,39  18245113    166407      0,90 /dev/mapper/centos-root
06:30:22          796       218     21,52     21,52    523947       341      0,07 /dev/sda1

06:30:22     MBfsfree  MBfsused   %fsused  %ufsused     Ifree     Iused    %Iused FILESYSTEM
06:30:24        30410      5532     15,39     15,39  18245113    166407      0,90 /dev/mapper/centos-root
06:30:24          796       218     21,52     21,52    523947       341      0,07 /dev/sda1

Summary:     MBfsfree  MBfsused   %fsused  %ufsused     Ifree     Iused    %Iused FILESYSTEM
Summary         30410      5532     15,39     15,39  18245113    166407      0,90 /dev/mapper/centos-root
Summary           796       218     21,52     21,52    523947       341      0,07 /dev/sda1

Details of inode, kernel tables and file tables

$ sar -v 2 3

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

06:57:23    dentunusd   file-nr  inode-nr    pty-nr
06:57:25       160833      2400    132081         3
06:57:27       160833      2400    132081         3
06:57:29       160833      2400    132081         3
Average:       160833      2400    132081         3

Network statistics

$ sar -n DEV

Linux 3.10.0-1127.10.1.el7.x86_64 (localhost.localdomain) 	10/06/2020 	_x86_64_	(2 CPU)

19:20:23        IFACE   rxpck/s   txpck/s    rxkB/s    txkB/s   rxcmp/s   txcmp/s  rxmcst/s
19:20:24       ens192     11,00      4,00      1,80      2,75      0,00      0,00      0,00
19:20:24           lo     79,00     79,00     43,62     43,62      0,00      0,00      0,00

Average:        IFACE   rxpck/s   txpck/s    rxkB/s    txkB/s   rxcmp/s   txcmp/s  rxmcst/s
Average:       ens192     11,00      4,00      1,80      2,75      0,00      0,00      0,00
Average:           lo     79,00     79,00     43,62     43,62      0,00      0,00

Which interrupt number could be causing a CPU bottleneck?

$ sar -I XALL 2 10
02:07:10 AM INTR intr/s
02:07:12 AM 0 992.57
02:07:12 AM 1 0.00
02:07:12 AM 2 0.00
02:07:12 AM 3 0.00
02:07:12 AM 4 0.00
02:07:12 AM 5 0.00
02:07:12 AM 6 0.00
02:07:12 AM 7 0.00
02:07:12 AM 8 0.00
02:07:12 AM 9 350.50

‘/proc/interrupts’ file will also provide helpful information. Interrupt halts CPU processing so that I/O or other operations can occur. Processing resumes after the specific operation takes place. It is very important that each device installed in machine is provided with an interrupt setting that does not conflict with the settings used by the hardware and other devices.

$ sudo cat /proc/interrupts

           CPU0       CPU1
  0:         48          0   IO-APIC-edge      timer
  1:         54          0   IO-APIC-edge      i8042
  8:          1          0   IO-APIC-edge      rtc0
  9:          0          0   IO-APIC-fasteoi   acpi
 12:         35        116   IO-APIC-edge      i8042
 14:          0          0   IO-APIC-edge      ata_piix
 15:          0          0   IO-APIC-edge      ata_piix
 16:        118       2513   IO-APIC-fasteoi   vmwgfx
 24:          0          0   PCI-MSI-edge      PCIe PME, pciehp
 25:          0          0   PCI-MSI-edge      PCIe PME, pciehp
 26:          0          0   PCI-MSI-edge      PCIe PME, pciehp
 27:          0          0   PCI-MSI-edge      PCIe PME, pciehp
NMI:          0          0   Non-maskable interrupts
LOC:   35392807   14792833   Local timer interrupts
SPU:          0          0   Spurious interrupts
PMI:          0          0   Performance monitoring interrupts
IWI:    2677624     215297   IRQ work interrupts

Linux Kernel Tuning: page allocation failure

Posted on by
Reply

If you start seeing these errors it means your server or instance started running out of kernel memory.

[10223.291166] java: page allocation failure: order:0, mode:0x1080020(GFP_ATOMIC), nodemask=(null)
[10223.301794] java cpuset=/ mems_allowed=0-1
[10223.307211] CPU: 29 PID: 19395 Comm: java Not tainted 4.14.154-99.181.amzn1.x86_64 #1
[10223.315658] Hardware name: Xen HVM domU, BIOS 4.2.amazon 08/24/2006
[10223.322004] Call Trace:
[10223.325230]  <IRQ>
[10223.328193]  dump_stack+0x66/0x82
[10223.332213]  warn_alloc+0xe0/0x180

In particular, these Order 0 (zero) errors, mean there isn’t even a single 4K page available to allocate.

This might sound weird on a system were we have a lot of RAM memory available. And actually, this may be a common situation on systems where the kernel is not tuned up properly.

In particular, we need to look at the following kernel parameter:

min_free_kbytes:

This is used to force the Linux VM to keep a minimum number
of kilobytes free.  The VM uses this number to compute a
watermark[WMARK_MIN] value for each lowmem zOn one in the system.
Each lowmem zone gets a number of reserved free pages based
proportionally on its size.

Some minimal amount of memory is needed to satisfy PF_MEMALLOC
allocations; if you set this to lower than 1024KB, your system will
become subtly broken, and prone to deadlock under high loads.

Setting this too high will OOM your machine instantly.

On systems with very large amount of RAM memory, this parameter is usually set too low. Change default value (have a look to the previous paragraph to avoid too low or too high values) and restart with sysctl. 1GB is the value I use on most of the large memory servers (64GB+).

sudo sed -i '${s/$/'"\nvm.min_free_kbytes = 1048576"'/}' /etc/sysctl.conf
sysctl vm.min_free_kbytes

echo "reloading the settings:"
sudo /sbin/sysctl -p

EBS Storage Performance Notes – Instance throughput vs Volume throughput

Posted on by
1

I just wanted to write a couple lines/guidance on this regard as this is a recurring question when configuring storage, not only in the cloud, but can also happen on bare metal servers.

What is throughput on a volume?

Throughput is the measure of the amount of data transferred from/to a storage device per time unit (typically seconds).

The throughput consumed on a volume is calculated using this formula:

IOPS (IO Ops per second) x BS (block size)= Throughput

As example, if we are writing at 1200 Ops/Sec, and the chunk write size is around 125Kb, we will have a total throughput of about 150Mb/sec.

Why is this important?

This is important because we have to be aware of the Maximum Total Throughput Capacity for a specific volume vs the Maximum Total Instance Throughput.

Because, if your instance type (or server) is able to produce a throughput of 1250MiB/s (i.e M4.16xl)) and your EBS Maximum Throughput is 500MiB/s (i.e. ST1), not only you will hit a bottleneck trying to write to the specific volumes, but also throttling might occur (i.e. EBS on cloud services).

How do I find what is the Maximum throughput for EC2 instances and EBS volumes?

Here is documentation about Maximum Instance Throughput for every instance type on EC2: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/ebs-optimized.html

And here about the EBS Maximum Volume throughput: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/ebs-volume-types.html

How do I solve the problem ?

If we have an instance/server that has more throughput capabilities than the volume, just add or split the storage capacity into more volumes. So the load/throughput will be distributed across the volumes.

As an example, here are some metrics with different volume configurations:

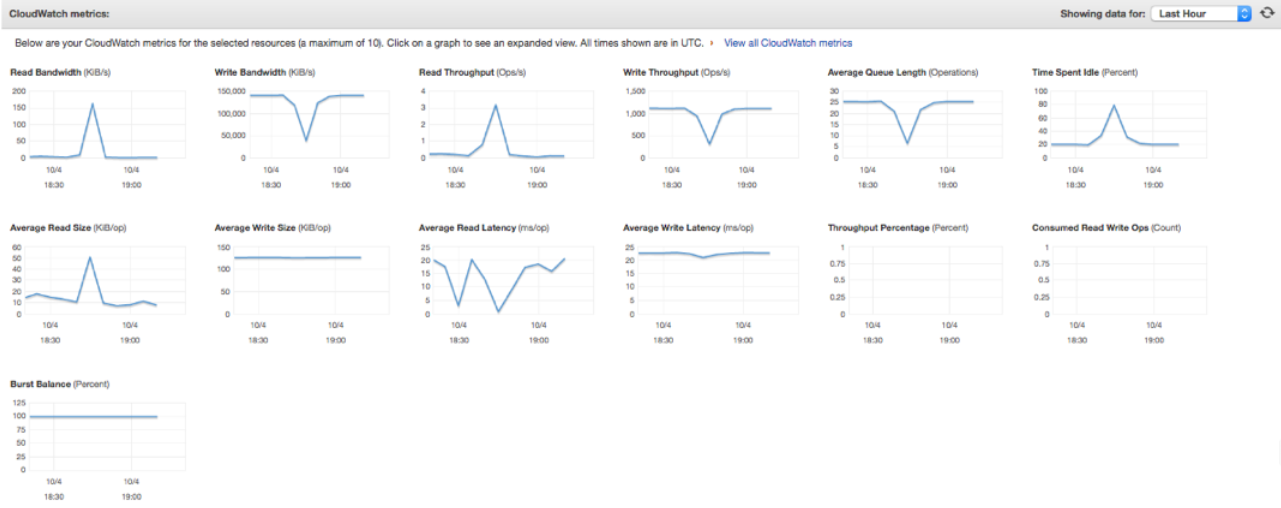

1 x 3000GB – 9000IOPS volume:

GP2-1x3000GB-9000IOPS

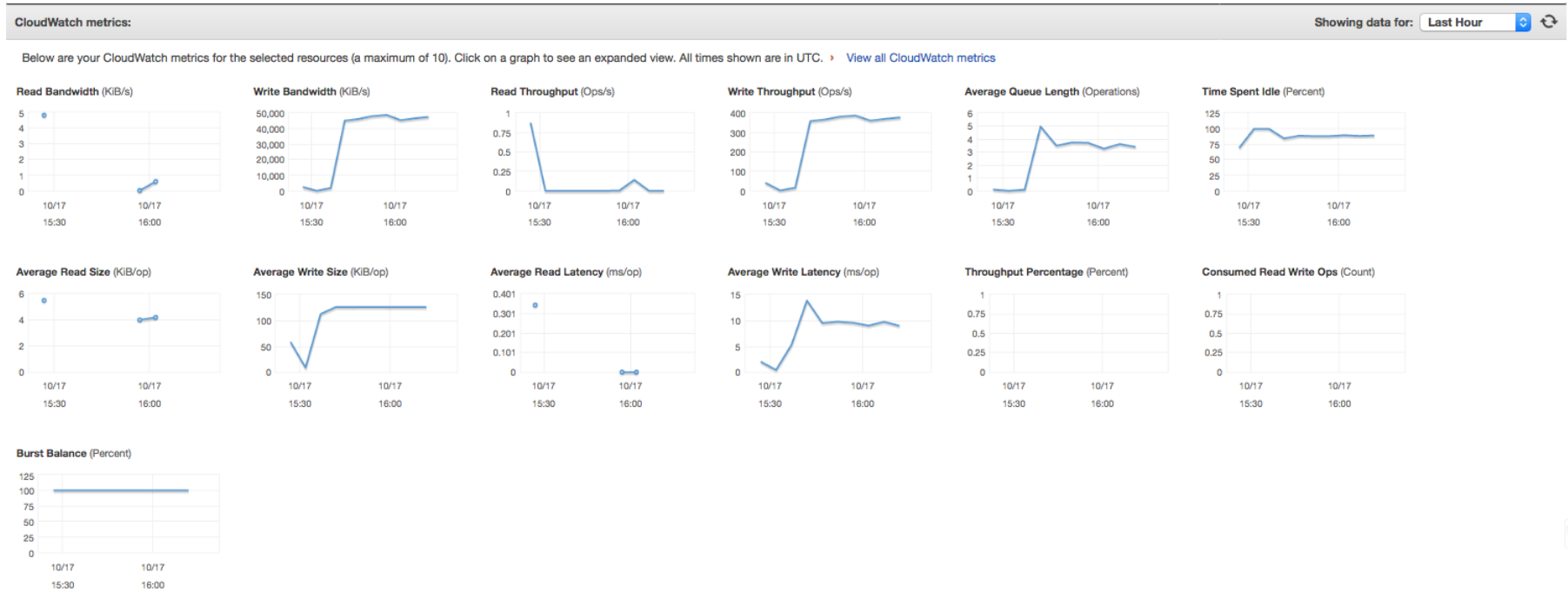

3 x 1000GB – 3000IOPS volume:

GP2-3x1000GB-3000IOPS

Look at some of the metrics: these are using the same instance type (m4.10xl – 500Mb/s throughput), same volume type (GP2 – 160Mb/s throughput) and running the same job:

  • Using 1 volume, Write/Read Latency is around 20-25 ms/op. This value is high compared to 3x1000GB volumes.
  • Using 1 volume, Avg Queue length 25. The queue depth is the number of pending I/O requests from your application to your volume. For maximum consistency, a Provisioned IOPS volume must maintain an average queue depth (rounded to the nearest whole number) of one for every 500 provisioned IOPS in a minute. On this scenario 9000/500=18. Queue length of 18 or higher will be needed to reach 9000 IOPS.
  • Burst Balance is 100%, which is Ok, but if this balance drops to zero (it will happen if volume capacity keeps being exceeded), all the requests will be throttled and you’ll start seeing IO errors.
  • On both scenarios, Avg Write Size is pretty large (around 125KiB/op) which will typically cause the volume to hit the throughput limit before hitting the IOPS limit.
  • Using 1 volume, Write throughput is around 1200 Ops/Sec. Having write size around 125Kb, it will consume about 150Mb/sec. (IOPS x BS = Throughput)

Linux Kernel Tuning: task blocked for more than 120 seconds

Posted on by
1

This might be old school, and maybe even boring reading. But, if you concern about performance on Linux servers, at some point, you will have to have a look to the kernel messages.

The problem:

When we run very stressful jobs running on large servers (large number of CPU’s and RAM memory), where IO activity is very high. It is pretty common to start seeing these messages on the ‘dmesg’ kernel output:

[24169.372862] INFO: task kswapd1:1140 blocked for more than 120 seconds.
[24169.375623] Tainted: G E 4.9.51-10.52.amzn1.x86_64 #1
[24169.378445] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message.
[24169.382533] kswapd1 D 0 1140 2 0x00000000
[24169.385066] ffff8811605c5a00 0000000000000000 ffff8823645dc900 ffff882362844900
[24169.389208] ffff882371357c00 ffffc9001a13ba08 ffffffff8153896c ffffc9001a13ba18
[24169.393329] ffff881163ac92d8 ffff88115e87f400 ffff882362844900 ffff88115e87f46c
[24169.445313] Call Trace:
[24169.446981] [<ffffffff8153896c>] ? __schedule+0x23c/0x680
[24169.449454] [<ffffffff81538de6>] schedule+0x36/0x80
[24169.451790] [<ffffffff8153907e>] schedule_preempt_disabled+0xe/0x10
[24169.454509] [<ffffffff8153a8d5>] __mutex_lock_slowpath+0x95/0x110
[24169.457156] [<ffffffff8153a967>] mutex_lock+0x17/0x27
[24169.459546] [<ffffffffa0966d00>] xfs_reclaim_inodes_ag+0x2b0/0x330 [xfs]
[24169.462407] [<ffffffffa0967be3>] xfs_reclaim_inodes_nr+0x33/0x40 [xfs]
[24169.465203] [<ffffffffa0978f59>] xfs_fs_free_cached_objects+0x19/0x20 [xfs]
...

Why is this happening?

This indicates that the process requested a block device such as a disk/swap, and wasn’t able to be fulfilled for more than 120 seconds and subsequently abandoned by the kernel.

As mentioned before, the probability of observing this behavior will increase when we use instances with large number of vCores (e.g. 64+ vCores), given that the volume of IO requests could be higher, and, the kernel buffer queues not configured for such load.

This is also very common on clustered environments. Even though the framework will retry, on Hadoop/YARN environments, this will impact in performance, and, might also lead to application failures.

The Solution:

To solve this problem, we have to increase the ‘dirty_background_bytes‘ kernel setting  to higher values to be able to accommodate the throughput.

As a base formula, we usually consider a value of dirty_background_bytes=10MB for 40MB/Sec throughput.

The goal is to have the page cache to allow the OS to write asynchronously to disk whenever possible. Otherwise, when the write becomes synchronous, it would involve a waiting time.

Additionally to the dirty_background_bytes kernel parameter, we can also set:

  • dirty_background_ratio = 10 (represents the percentage of system memory which when dirty then system can start writing data to the disks. When the dirty pages exceed ratio 10, I/O starts, i.e they start getting flushed / written to the disk)
  • dirty_ratio = 15 (is percentage of system memory which when dirty, the process doing writes would block and write out dirty pages to the disks. When total number of dirty pages exceed ratio 15, all writes get blocked until some of the dirty pages get written to disk. This is like an upper limit)

We try to keep these two values low to avoid  I/O bottlenecks. We can experiment setting both down to zero, to force fast flushes on high stress environments.

Another parameter we can use is dirty_bytes, which represents the amount of dirty memory at which a process generating disk writes will itself start writeback. We should set dirty_ratio = 0 if we set dirty_bytes, as only one of these might be specified at a time.

e.g.

dirty_bytes = 2147483648

More details on these parameters is available here.
